This page describes the basic process for getting your car setup for speed density operation with ECMLink. If you need a more general speed density tutorial, then the Speed Density 101 page may be what you're looking for. In fact, we're going to assume you already know everything off that page as we discuss items below. So it might be a good idea to read over it even if you're already pretty familiar with SD in general.
The basic process for getting a new SD system up and going is listed here. More details follow in the sections below.
The first step is to connect your sensors to your ECU. You'll need a GM IAT sensor and an absolute pressure sensor. The following two sections list the supported sensors. A good source for the GM sensors might be GM Parts Direct. We also really like the EFI Connection for GM connectors.
For additional wiring and/or pinout information, please refer to our ECU Wiring Information page.

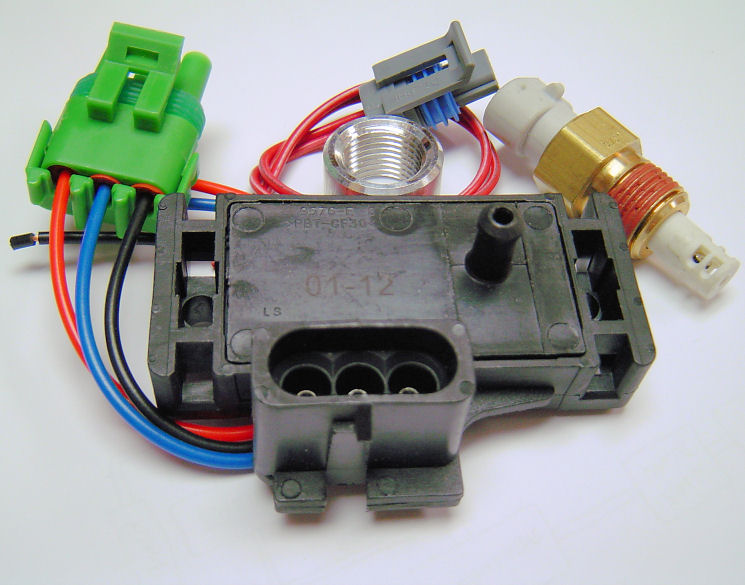

NOTE: Keep in mind that we do have the compatible Omni 4-bar MAP sensor and GM IAT sensors available directly off our website. You can order them individually or you can get a bundled discount. We also have a plug and play SD harness too.
|GM Intake Air Temperature P/N 25036751, pig tail 12102620
|The exact same as the GM IAT
|Apparently also the exact same as the GM IAT. Hit Summit/JEGS/etc.
You must connect your IAT sensor to the ECU's IAT input. This is the only input that's compatible with the speed density logic inside the ECU.
You'll want to use pin 72 (red w/blue stripe) on a 2G ECU harness or pin 8 (green w/orange stripe) on a 1G ECU harness or pin 52 (red w/black stripe) on an EVO1-3 for this. Or, more likely, you'll want to use those wires off the MAF harness under the hood since that's where the IAT sensor is actually being installed. The wire colors are the same on the MAF connector as on the ECU harness.
The IAT sensor has two wires coming out of it. Either wire can be connected to the ECU's IAT input.
The other wire should be connected to the ECU's sensor ground. That would be pin 92 (black) on a 2G ECU harness or pin 24 (green w/black stripe) on a 1G ECU harness or pin 72 (black) on an EVO1-3 ECU harness. This can also be pulled from the MAF connector under the hood. The wire colors are the same on the MAF connector as on the ECU harness.
RUNNING WITHOUT AN IAT SENSOR: You can run speed density reasonably well without an IAT sensor at all if you have to. It is absolutely better to have one, no question about it. But if you find yourself in the situation where you simply can't get an IAT sensor installed but you need to enable speed density operation anyway, go ahead. Just make SURE you go into the Direct Access tab and zero out the SDTempWeighting table. Doing so basically tells the ECU to ignore the IAT input when running SD.
|GM 3-bar P/N 12223861, pig tail 15305891
|GM 3.3-bar P/N 9373269, pig tail 88987997
|AEM 30-2130-50 (50 PSIA / 3.5 Bar)
|AEM 30-2130-75 (75 PSIA / 5 Bar)
|MAP-MITS-3BR or MAP-GM-3BR (3 bar)
|MAP-MITS-4BR or MAP-GM-4BR (4 bar)
You wire up a pressure sensor much like you wire up any other aftermarket sensor for logging. The details of which can get complicated because there are several different inputs you can use and several different sensors. So it's hard to write up a COMPLETE how-to on this.
The basic process involves the following steps:

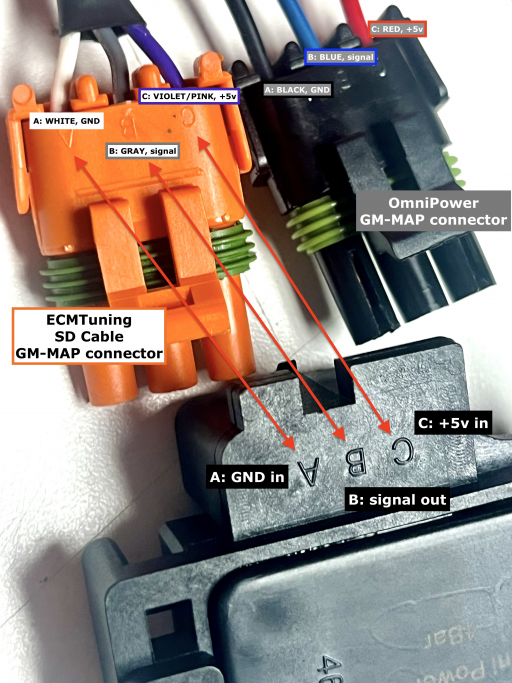

Although we can't possibly document all the different combinations of MAP sensors going to all the different ECU inputs, we will at least document the “typical” case of installing our GM-style Omni power 4-bar sensor to the car's baro input. If you have our SD cable then, of course, you can just plug it straight up; no wiring or soldering required. But if you do not, then you'll have the green pigtail shown in this image.
The red wire needs to be connected to the ECU's +5v line. That would be pin 81 (green w/yellow stripe) on a 2GECU harness or pin 23 (green w/red stripe) on a 1G ECU harness or pin 61 (green w/red stripe) on an EVO1-3 ECU harness. This can also be pulled from the MAF connector under the hood. The wire colors are the same on the MAF connector as on the ECU harness.
The black wire needs to be connected to the ECU's sensor ground. That would be pin 92 (black) on a 2G ECU harness or pin 24 (green w/black stripe) on a 1G ECU harness or pin 72 (black) on an EVO1-3 ECU harness. This can also be pulled from the MAF connector under the hood. The wire colors are the same on the MAF connector as on the ECU harness.
The blue wire needs to be connected to the ECU's baro input. That would be pin 85 (orange) on a 2GECU harness or pin 16 (green w/yellow stripe) on a 1GECU harness or pin 65 (pink) on an EVO1-3ECU harness. This can also be pulled from the MAFconnector under the hood. The wire colors are the same on the MAFconnector as on the ECU harness.
If you have our GM MAF cable already, GREAT! You can use the breakout points provided on that cable to connect your MAP sensor and IAT sensor directly to the car's wiring harness. Our GM MAF IAT/Baro page describes how to do this.
If you're using our SD plug-n-play cable with our IAT and 4-bar MAP sensors, then the IAT sensor will be connected to the IAT input and the OmniPower 4-bar MAP sensor will be connected to the baro input.
First, make sure you have installed the latest version of our application off our downloads page. You'll want at least v3.18.182. Anything older than that may not even connect with your ECU.
Once you have installed the latest software, you can enable speed density operation by defining three things:
MAP Sensor Location and Type, BaseMAF type, and Engine Displacement
Because you can connect your MAP sensor to any number of ECU inputs, you have to tell the ECU where it can find this sensor in order to use it for SD operation. You do this on the ECU Inputs tab in the “Pin Assignments for ECMLink Functions (ECU-side)” area.
NOTE: If you have a REALLY old version of V3Lite, then you'll find a checkbox on the SD tab labeled “enable speed density” instead. If that's the case, please consider upgrading your firmware because your V3Lite ECU is seriously outdated.
The final step is to set the engine displacement. On the Speed Density tab, there's a text box where you need to enter your engine displacement. The ECU uses this information to correctly calculate airflow. More information on this process is outlined in the SD101 page.
Mass airflow sensors used by the DSM ECU tend to require some “smoothing” or “averaging” inside the ECU of their output signal. This type of averaging actually delays the signal used by the ECU (since it's averaged out, a real change in airflow takes a little longer to register inside the ECU). Fortunately, mass airflow sensors respond very quickly to changes in airflow rate, so this delay isn't a problem.
But because pressure sensors tend to respond more slowly to pressure changes than mass air sensors respond to airflow changes, you have to disable this smoothing. Otherwise you end up with terrible throttle response as the ECU is unable to respond quickly enough to a change in throttle position.
To disable airflow smoothing, just check the “Disable airflow smoothing w/SD operation” checkbox on the Misc tab as shown in the screen shot here.
If you still notice some slight hesitation with throttle changes even after disabling airflow smoothing factors, you may need to adjust your base throttle tip-in. You can do this in Direct Access (F6) using the BaseTipInTPSAdj table.
This table is indexed by rate of change of throttle position. Because this value isn't at all obvious, you need to log TPSDelta to see which rows in the BaseTipInTPSAdj are being used at any given point in your log. TPSDelta is the value used as the raw index into the BaseTipInTPSAdj table.
If you increase values in the BaseTipInTPSAdj, you will get a larger “squirt” of fuel as you increase throttle position. Do this if you notice some hesitation when you jab the throttle once you enable SD operation.
This is the “fun” part of a new SD installation. Luckily, there are a several tips and helpers that can make this process pretty painless.
